PT Series
2.6/3.9/4.8
Borderless Arc, Consistent Color
Dimension: 500 x 1000 /1000 x 1000
Pixel Pitch Outdoor: 15.6 mm, 20.8 mm, 31.2 mm
Applications: Building facades, retail showcases, outdoor advertising, Applications: Building facades, retail showcases, outdoor advertising, Applications: Building facades, retail showcases, outdoor advertising,
Key Features:
Top-level IP68 protection, waterproof & dustproof
71% ultra-high transparency
10,000 nits brightness, 7680 Hz refresh rate, 16-bit grayscale for stunning visuals
Lightweight design, 10kg/㎡
Efficient heat dissipation, 30% energy saving
Contact Now
Precise Color Calibration forSuperior Visuals
With 10,000 nits brightness, 16-bit grayscaleand a 3,840Hz refresh rate, combined with anoutdoor corner design, PT VR delivers vivid.lifelike images and a truly immersive visualimpact.
10,000nits
Brightness
16bit
Gray Scale
3,840hz
Refreshment

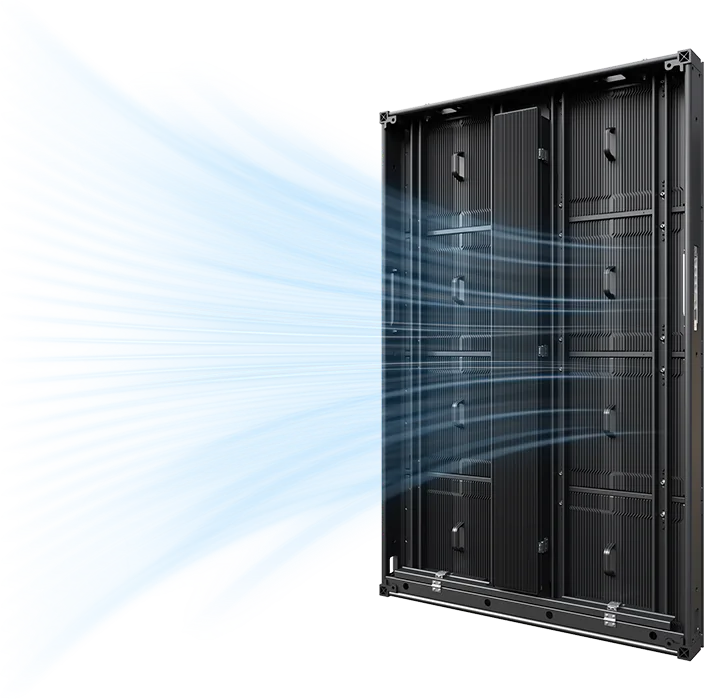

High Stability, Fast Cooling Reliable Performance
Die-castauminum power boxes ensure rapid heat dissipation. Premium materials.advanced technology,and strict quality control guaranteeong-term stabe performance.
CCES Technology
for High Energy Efficiency
Fabulux adopts a PCB and power design with independent voltages, reducing overall power consumption by at least 30% compared to traditional 5V systems.
30%
Power saving
14kg
Lightweight DesignEasy Handling & Installation
Weighing only 14 kg andwith an 86mm thickness, it simplifies handling and instalation.
Lightweight DesignEasy Handling & Installation
Weighing only 14 kg andwith an 86mm thickness, it simplifies handling and instalation.
Product Specifications
| ltem Number | FAB-PTF3.9 | FAB-PTF4.8 | FAB-PTF5.9 | FAB-PTF6.2 | FAB-PTF8.3 |
|---|---|---|---|---|---|
| Pixel Pitch(mm) | 3.91 | 4.81 | 5.95 | 6.25 | 8.33 |
| Pixel Density(dots/SQM) | 65,536 | 43,264 | 28,224 | 25,600 | 14,400 |
| LED Type | SMD1921 / SMD1935 | SMD1935 | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution(pixels) | 128×64 | 104×52 | 84×42 | 80×40 | 60×30 |
| Module Size(mm) | 500×250 | 500×250 | 500×250 | 500×250 | 500×250 |
| Cabinet Size(mm) | 1000×500 / 1000×750 / 1000×1000 / 1500×1000 / 1500×750 / 1500×500 | ||||
| Cabinet Weight(KG/sQM) | 27 | ||||
| Brightness(Nits) | 5,000–7,000 / 6,000–8,000 | 6,000–8,000 | 5,000–7,000 | 6,000–9,000 | |
| Refreshment(Hz) | 3,840 / 7,680 | 7,680 | 3,840 | 3,840 | |
| Grey Scale(Bit) | 14–16 | 14–16 | 14–16 | 14–16 | |
| Max Power Consumption(W/sQM) | 580±5% / 650±5% | 650±5% | 540±5% | 550±5% | 550±5% |
| Ave Power Consumption(W/sQM) | 174 / 195 | 195 | 162 | 165 | 165 |
| Maintenance Type | Front / Rear | ||||
| Ingress Protection | IP66 / IP66 | ||||
| Certificate | CE(LVD, EMC), CB, FCC, ETL | ||||
